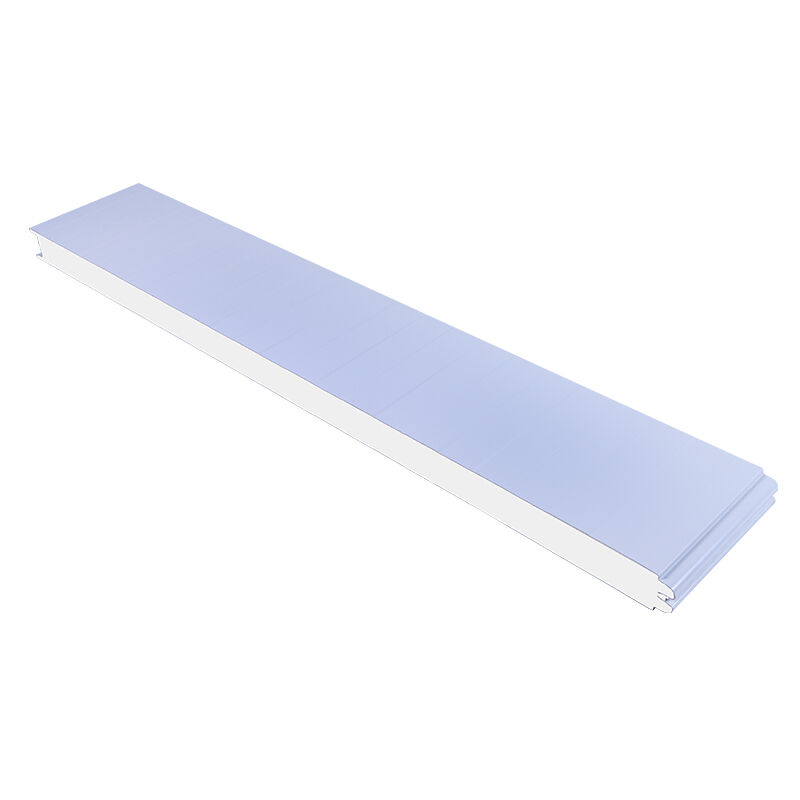

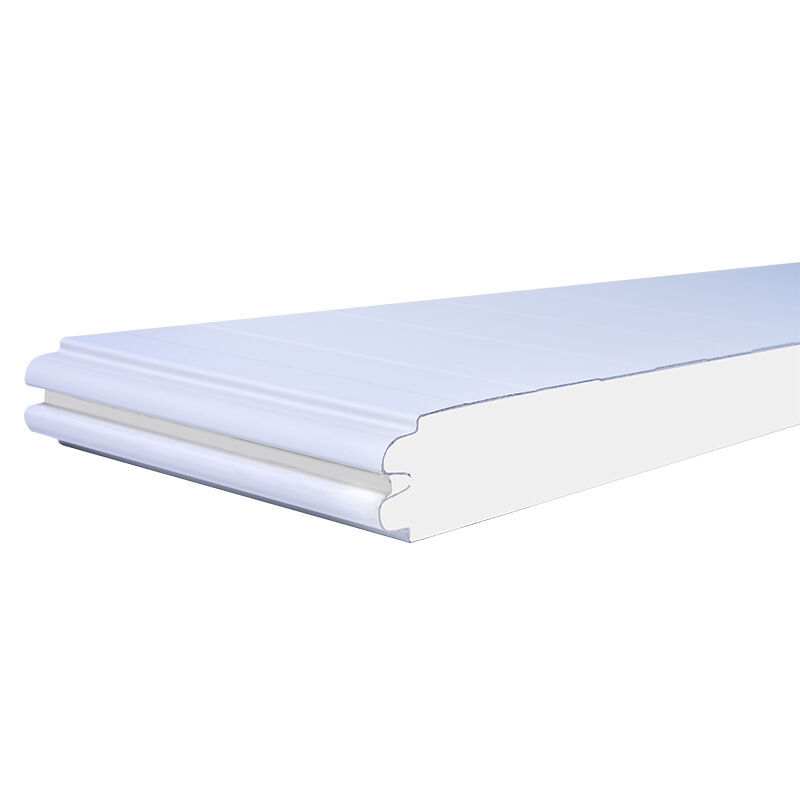

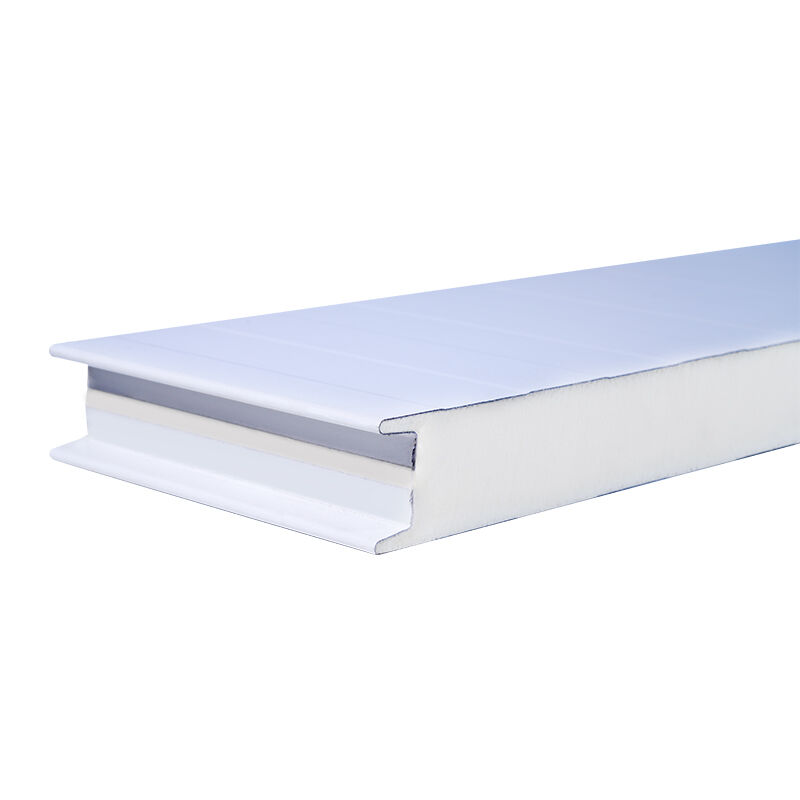

PIR Insulated Sandwich Panel For Wall Cladding

Advantage of polyurethane sandwich wall panel:

Lightweight, innovative, and aesthetically pleasing design. The weight typically ranges from 10 kg/m² to 14 kg/m², equivalent to 1/30 of a brick wall. The surface has vibrant colors and requires no additional decoration.

High strength, rigidity, stability, impact resistance, and seismic performance, with excellent corrosion and weather resistance. Suitable for both enclosure and load-bearing structures, eliminating the need for beams and columns in general buildings.

Superior thermal insulation, heat resistance, and soundproofing performance. In terms of anti-condensation properties, a 35mm-thick polyurethane board is equivalent to a 1130mm-thick red brick wall.

High degree of prefabrication and assembly, with minimal impact from harsh weather during construction. Compared to traditional construction methods, the construction period can be shortened by over 40%.

Fire resistance: Combustion performance rated as Class B, with a maximum service temperature of 180°C (allowing instantaneous exposure to 250°C). Under direct flame exposure, it exhibits carbonization, no dripping, no curling, and no melting. After flame exposure, a "graphite foam" layer forms on the surface, effectively protecting the internal foam structure.
