Product Name |
Great Wall Insulation Aluminum Sandwich Roof Panel |
|
Surface Steel Thickness |
0.4 mm - 0.8mm(PPGI) 0.4mm - 1.0mm (AL-Mn-Mg alloy sheet) |
|
Surface Panel Material |
PPGI / AL-Mn-Mg alloy sheet |
|
Panel Thickness |
30mm(45mm) / 50mm(65mm) |
|
Panel Width |
950mm |

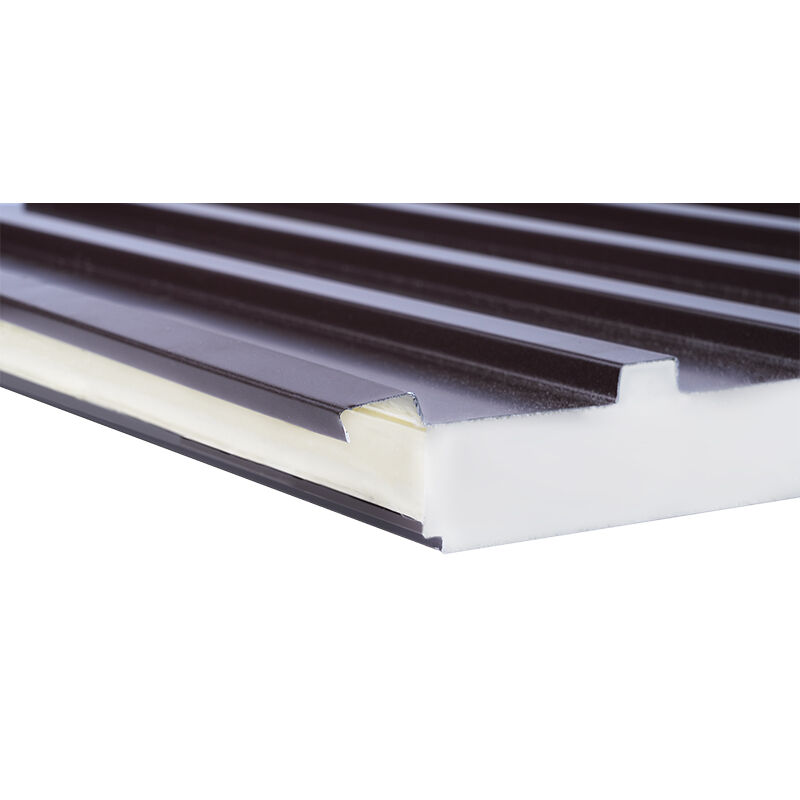

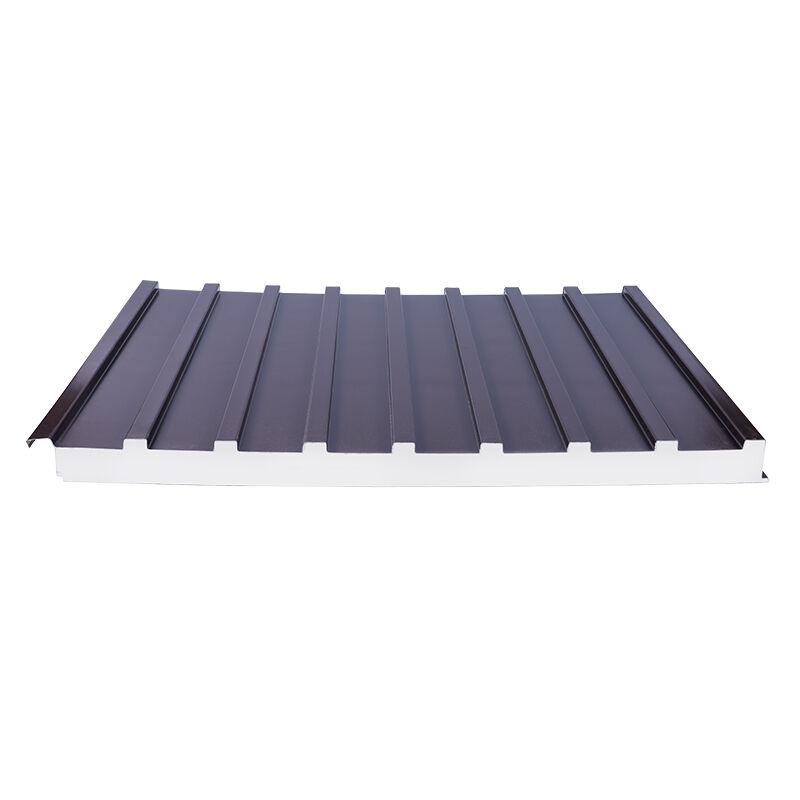

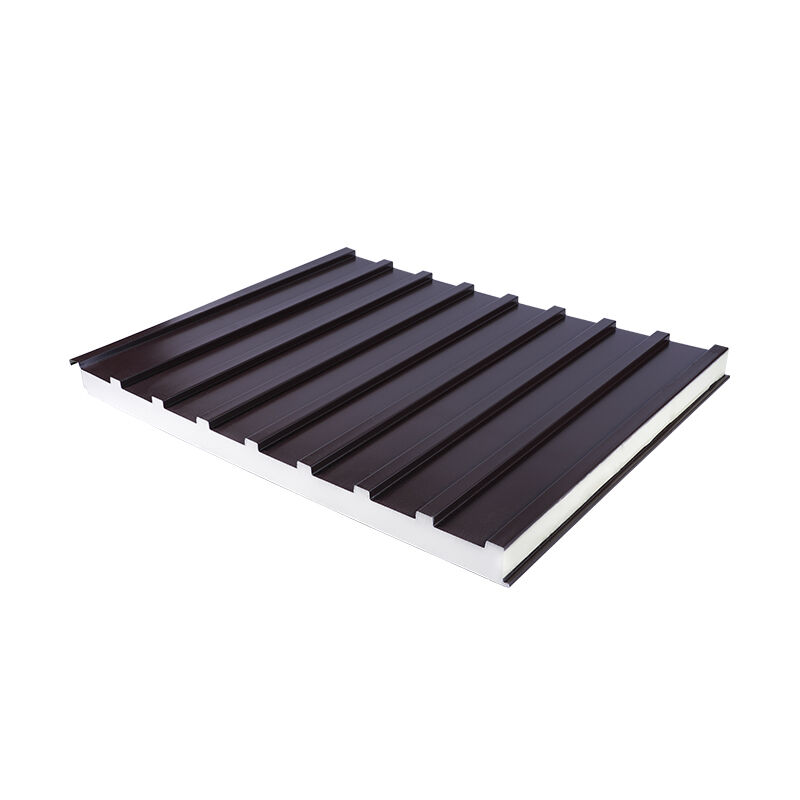

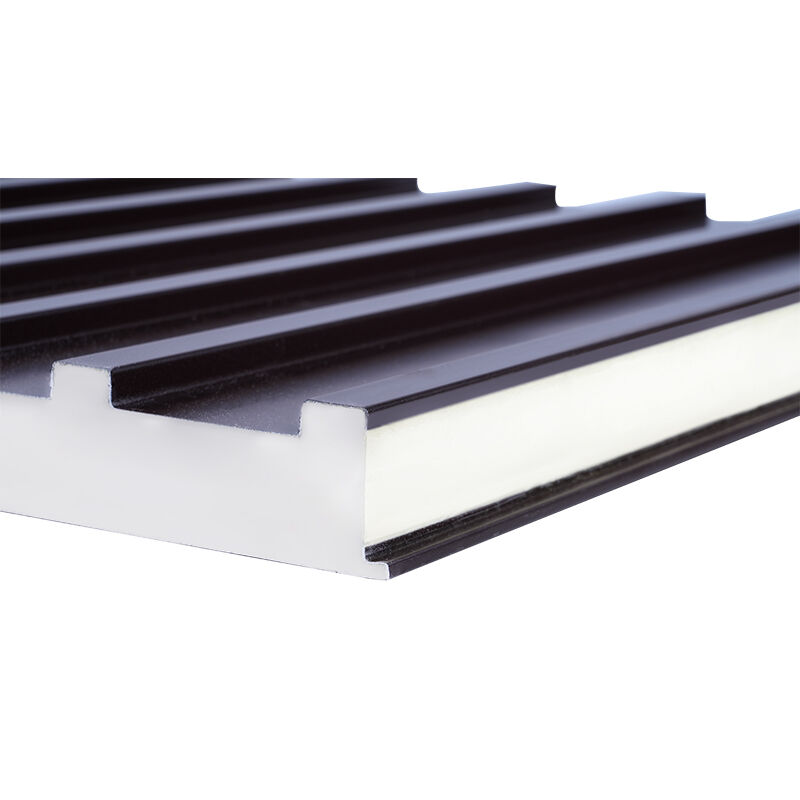

Polyurethane Great Wall Panel is a high-performance thermal insulation ceiling board. It is made of rigid polyurethane foam (PIR) with strong heat resistance, waterproofing, and fireproofing. The panel has a unique "Great Wall" groove design, providing a stylish look and easy installation.
This ceiling board is lightweight, durable, and resists mold, moisture, and corrosion. It offers excellent thermal insulation, reducing energy costs in buildings. The surface is smooth and can be painted or laminated for different finishes.
Polyurethane Great Wall Panel is widely used in homes, offices, and commercial spaces. It is eco-friendly, free from harmful chemicals, and has a long service life. Installation is simple with interlocking edges, saving time and labor.
| Great Wall Insulation Aluminum Sandwich Roof Panel | |
| Surface Steel Thickness | 0.4 mm— 0.8mm(PPGI) 0.4mm-1.0mm (AL-Mn-Mg alloy sheet) |
| Surface Panel Material | PPGI /AL-Mn-Mg alloy sheet |
| Panel Thickness | 30mm(45mm)/50mm(65mm) |
| Panel Width | 950mm |
| Panel Length | Customized according to customer requirements |
| Core Material Density | 34-40kg/m³ |
| Usual Colors | Coffee /Gray |
| Thermal Conductivity | 0.019-0.024 (W/m·K) |
| Rocommended Steel Manufacturers | Baosteel, Ye Chien, Bluescope, Guanzhou, Xinyu, Shenlong and so on |
